深溝球等截面薄壁軸承（C型）

瀏覽次數：11803次

所屬分類：等截面薄壁軸承(英制)

發布日期：2021-07-14 09:47:01

咨詢熱線：13503790601 在線留言

產品介紹尺寸參數 應用領域

　 薄壁深溝球軸承介紹

　　等截面薄壁徑向深溝球軸承的設計是為了節省空間，降低整體重量的設計，大大減少摩擦，并提供的運行精度。對于薄壁等截面徑向接觸球軸承，可以在不犧牲軸承性能或使用壽命的情況下，縮減設計并降低制造成本。

等截面薄壁深溝球軸承型號尺寸參數

等截面薄壁軸承（徑向深溝球類型）

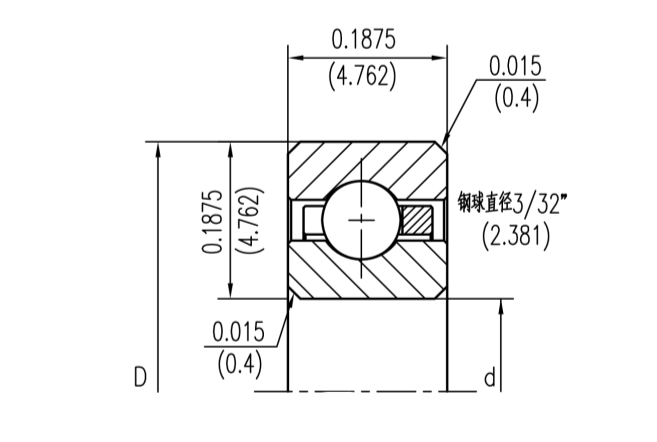

◆KAA SERIES
◆KAA SERIES
型號	尺寸			載荷（P)		重量
型號	d	D	H	Cor	Cr	Kg
KAA10CP0	25.4	34.925	4.762	1290	670	0.012
KAA15CP0	38.1	47.625	4.762	1780	800	0.018
KAA17CP0	44.45	53.975	4.762	2110	1770	0.02

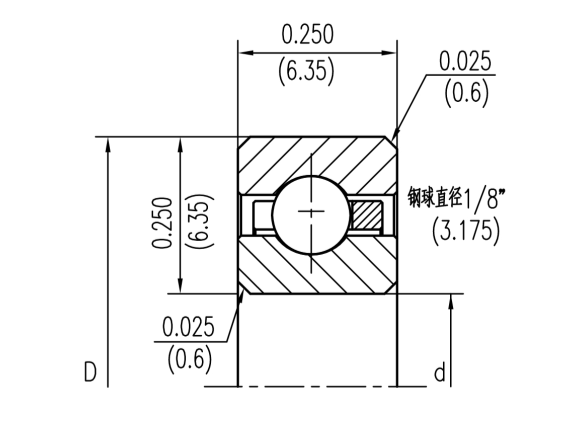

◆KA SERIES
◆KA SERIES
型號	尺寸			載荷（P)		重量
型號	d	D	H	Cor	Cr	Kg
KA020CP0	50.8	63.5	6.35	3020	1420	0.048
KA025CP0	63.5	76.2	6.35	3690	1600	0.059
KA030CP0	76.2	88.9	6.35	4400	1820	0.068
KA035CP0	88.9	101.6	6.35	5070	2000	0.082
KA040CP0	101.6	114.3	6.35	5730	2130	0.09
KA042CP0	107.95	120.65	6.35	6090	2220	0.095
KA045CP0	114.3	127	6.35	6400	2310	0.1
KA047CP0	120.65	133.35	6.35	6760	2400	0.104
KA050CP0	127	139.7	6.35	7070	2490	0.109
KA055CP0	139.7	152.4	6.35	7780	2620	0.118
KA060CP0	152.4	165.1	6.35	8450	2800	0.13
KA065CP0	165.1	177.8	6.35	9110	2930	0.14
KA070CP0	177.8	190.5	6.35	9780	3070	0.15
KA075CP0	190.5	203.2	6.35	10450	3200	0.16
KA080CP0	203.2	215.9	6.35	11110	3330	0.172
KA090CP0	228.6	241.3	6.35	12490	3600	0.2
KA100CP0	254	266.7	6.35	13820	3870	0.227
KA110CP0	279.4	292.1	6.35	15160	4130	0.236
KA120CP0	304.8	317.5	6.35	16540	4360	0.254

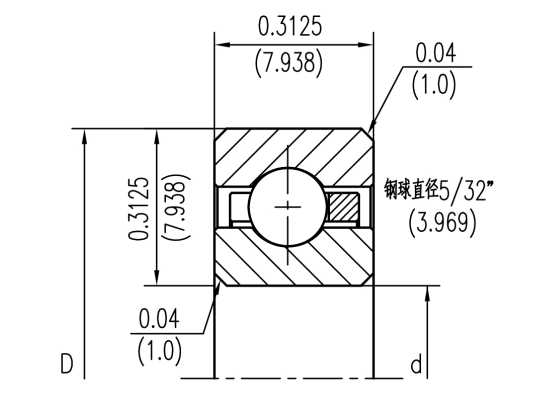

◆KB SERIES
◆KB SERIES
型號	尺寸			載荷（P)		重量
型號	d	D	H	Cor	Cr	Kg
KB020CP0	50.8	66.675	7.938	4130	2000	0.073
KB025CP0	63.5	79.375	7.938	5070	2310	0.091
KB030CP0	76.2	92.075	7.938	5960	2580	0.109
KB035CP0	88.9	104.775	7.938	6850	2800	0.125
KB040CP0	101.6	117.475	7.938	7780	3070	0.14
KB042CP0	107.95	123.825	7.938	8130	3160	0.147
KB045CP0	114.3	130.175	7.938	8670	3290	0.16
KB047CP0	120.65	136.525	7.938	9020	3380	0.163
KB050CP0	127	142.875	7.938	9560	3510	0.172
KB055CP0	139.7	155.575	7.938	10490	3730	0.186
KB060CP0	152.4	168.275	7.938	11380	3960	0.205
KB065CP0	165.1	180.975	7.938	12270	4130	0.216
KB070CP0	177.8	193.675	7.938	13200	4360	0.232
KB075CP0	190.5	206.375	7.938	14090	4530	0.25
KB080CP0	203.2	219.075	7.938	14980	4760	0.262
KB090CP0	228.6	244.475	7.938	16800	5110	0.3
KB100CP0	254	269.875	7.938	18620	5470	0.331
KB110CP0	279.4	295.275	7.938	20400	5820	0.36
KB120CP0	304.8	320.675	7.938	22230	6180	0.39
KB140CP0	355.6	371.475	7.938	25830	6800	0.476
KB160CP0	406.4	422.275	7.938	29430	7420	0.544
KB180CP0	457.2	473.075	7.938	33070	8050	0.612
KB200CP0	508	523.875	7.938	36670	8620	0.68

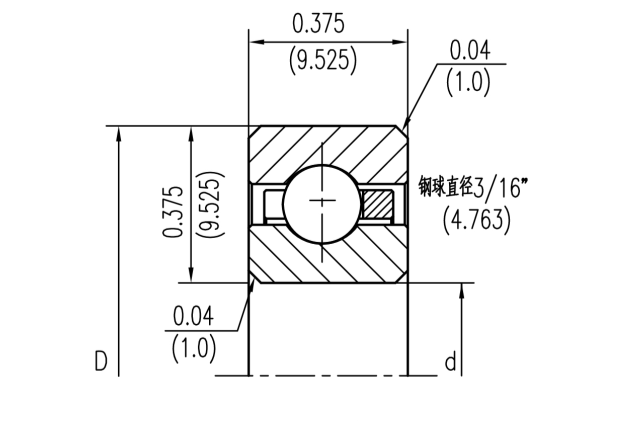

◆KC SERIES
◆KC SERIES
型號	尺寸			載荷（P)		重量
型號	d	D	H	Cor	Cr	Kg
KC040CP0	101.6	120.65	9.525	9330	3910	0.204
KC042CP0	107.95	127	9.525	9780	4090	0.213
KC045CP0	114.3	133.35	9.525	10400	4220	0.225
KC047CP0	120.65	139.7	9.525	10930	4360	0.235
KC050CP0	127	146.05	9.525	11510	4490	0.263
KC055CP0	139.7	158.75	9.525	12580	4800	0.268
KC060CP0	152.4	171.45	9.525	13650	5070	0.295
KC065CP0	165.1	184.15	9.525	14710	5330	0.312
KC070CP0	177.8	196.85	9.525	15780	5560	0.34
KC075CP0	190.5	209.55	9.525	16850	5820	0.36
KC080CP0	203.2	222.25	9.525	17910	6050	0.387
KC090CP0	228.6	247.65	9.525	20050	6530	0.45
KC100CP0	254	273.05	9.525	22180	6980	0.481
KC110CP0	279.4	298.45	9.525	24310	7420	0.526
KC120CP0	304.8	323.85	9.525	26450	7870	0.567
KC140CP0	355.6	374.65	9.525	30720	8670	0.689
KC160CP0	406.4	425.45	9.525	35030	9470	0.785
KC180CP0	457.2	476.25	9.525	39290	10220	0.88
KC200CP0	508	527.05	9.525	43560	10980	0.98
◆KD SERIES
◆KD SERIES
型號	尺寸			載荷（P)		重量
型號	d	D	H	Cor	Cr	Kg
KD040CP0	101.6	127	12.7	13690	6270	0.366
KD042CP0	107.95	133.35	12.7	14180	6400	0.386
KD045CP0	114.3	139.7	12.7	15200	6710	0.405
KD047CP0	120.65	146.05	12.7	15690	6850	0.426
KD050CP0	127	152.4	12.7	16710	7160	0.454
KD055CP0	139.7	165.1	12.7	18230	7560	0.485
KD060CP0	152.4	177.8	12.7	19780	8000	0.526
KD065CP0	165.1	190.5	12.7	21290	8400	0.566
KD070CP0	177.8	203.2	12.7	22800	8800	0.606
KD075CP0	190.5	215.9	12.7	24310	9160	0.65
KD080CP0	203.2	228.6	12.7	25830	9560	0.694
KD090CP0	228.6	254	12.7	28890	10310	0.78
KD100CP0	254	279.4	12.7	31920	10980	0.853
KD110CP0	279.4	304.8	12.7	34980	11690	0.934
KD120CP0	304.8	330.2	12.7	38010	12360	1.02
KD140CP0	355.6	381	12.7	44090	13650	1.24
KD160CP0	406.4	431.8	12.7	50180	14890	1.41
KD180CP0	457.2	482.6	12.7	56230	16050	1.58
KD200CP0	508	533.4	12.7	62320	17200	1.75

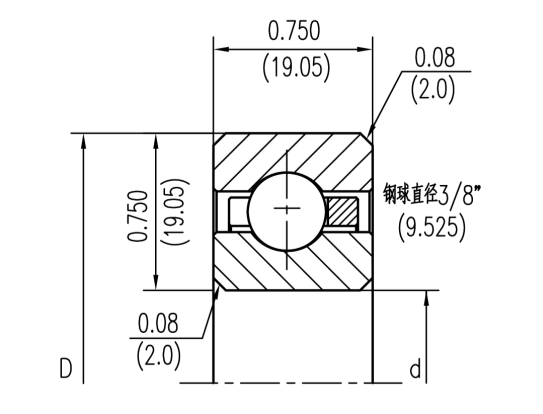

◆KF SERIES
◆KF SERIES
型號	尺寸			載荷（P)		重量
型號	d	D	H	Cor	Cr	Kg
KF040CP0	101.6	139.7	19.05	23830	12130	0.875
KF042CP0	107.95	146.05	19.05	25070	12580	0.93
KF045CP0	114.3	152.4	19.05	26360	12980	0.975
KF047CP0	120.65	158.75	19.05	27600	13380	1.04
KF050CP0	127	165.1	19.05	28850	13780	1.09
KF055CP0	139.7	177.8	19.05	31340	14580	1.18
KF060CP0	152.4	190.5	19.05	33870	15340	1.24
KF065CP0	165.1	203.2	19.05	36360	16090	1.35
KF070CP0	177.8	215.9	19.05	38890	16850	1.45
KF075CP0	190.5	228.6	19.05	41380	17560	1.56
KF080CP0	203.2	241.3	19.05	43920	18230	1.66
KF090CP0	228.6	266.7	19.05	48900	19600	1.81
KF100CP0	254	292.1	19.05	53920	20940	2.02
KF110CP0	279.4	317.5	19.05	58940	22230	2.18
KF120CP0	304.8	342.9	19.05	63960	23470	2.38
KF140CP0	355.6	393.7	19.05	74010	25830	2.72
KF160CP0	406.4	444.5	19.05	84010	28140	3.22
KF180CP0	457.2	495.3	19.05	94060	30320	3.58
KF200CP0	508	546.1	19.05	104100	32450	4.04

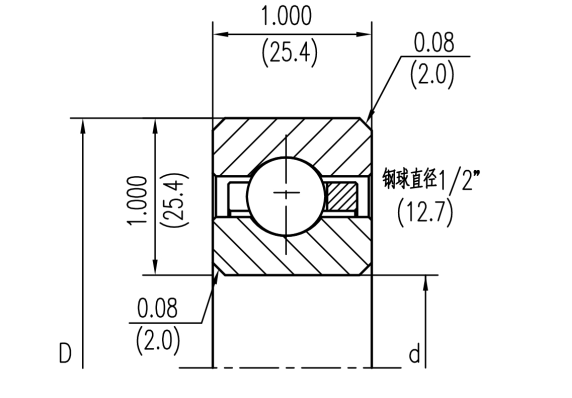

◆KG SERIES
◆KG SERIES
型號	尺寸			載荷（P)		重量
型號	d	D	H	Cor	Cr	Kg
KG040CP0	101.6	152.4	25.4	36490	20000	1.65
KG042CP0	107.95	158.75	25.4	36490	20000	1.75
KG045CP0	114.3	165.1	25.4	38940	20900	1.81
KG047CP0	120.65	171.45	25.4	41340	21740	1.91
KG050CP0	127	177.8	25.4	43780	22580	2.02
KG055CP0	139.7	190.5	25.4	46230	23430	2.17
KG060CP0	152.4	203.2	25.4	51070	25030	2.31
KG065CP0	165.1	215.9	25.4	53520	25830	2.47
KG070CP0	177.8	228.6	25.4	58360	27380	2.67
KG075CP0	190.5	241.3	25.4	60810	28140	2.83
KG080CP0	203.2	254	25.4	65650	29600	3
KG090CP0	228.6	279.4	25.4	72990	31780	3.3
KG100CP0	254	304.8	25.4	80280	33870	3.65
KG110CP0	279.4	330.2	25.4	87570	35870	3.96
KG120CP0	304.8	355.6	25.4	94860	37830	4.32
KG140CP0	355.6	406.4	25.4	109440	41600	4.96
KG160CP0	406.4	457.2	25.4	124060	45250	5.65
KG180CP0	457.2	508	25.4	138640	48720	6.28
KG200CP0	508	558.8	25.4	153220	52100	7.53
KG250CP0	635	685.8	25.4	174000	71000	8.85
